3-pin ZIF Breakout
$--.--
Related Items
-
Peak Atlas Breakout StandOut of stock
-
Peak Atlas Breakout Stand
Using this with a Peak Atlas device, like the DCA55 or DCA75? Try one of these breakout stands. It'll hold your DCA device and the 3-Pin ZIF Breakout unit as one, making for smoother use. FREE STL models available below for your to 3d print at home.
Peak Atlas Breakout Stand - STL model - M2.5 screws
Peak Atlas Breakout Stand - STL model - snap fit

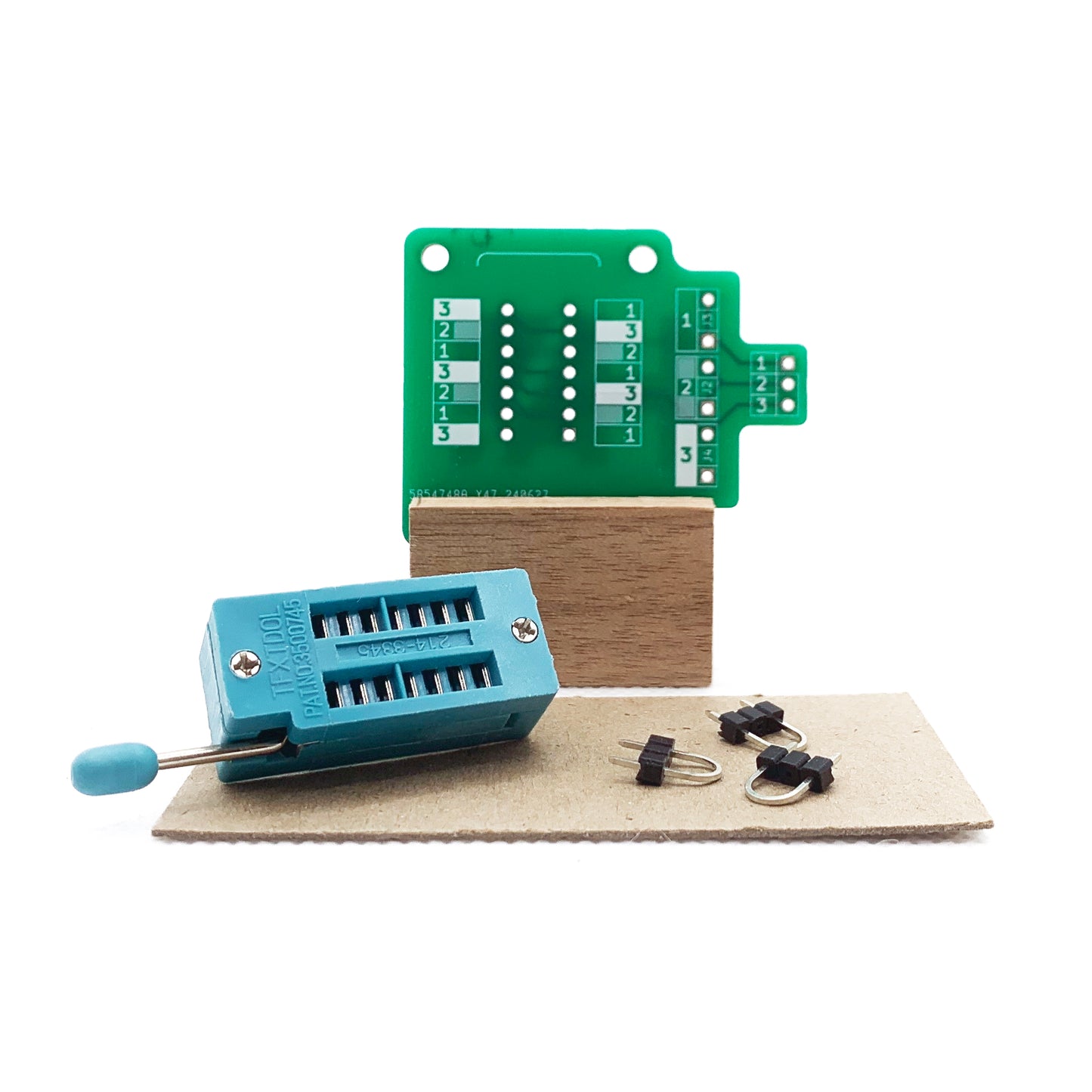

About The 3-pin ZIF Breakout
A better way to 'tap' your three-lead parts.
Hook grips are great and all, but if you've got a batch of a few dozen, a few hundred, or even more parts to test, I think you'll appreciate a more efficient way to test your parts.
That's what this little board is for. I primarily use mine as a semi-permanent breakout interface to a Peak Atlas DCA75 semiconductor analyzer. (see pics). But there are many ways to put this handy board to work.
There is also an unpopulated 1x3 through hole pad area which can accept standard 2.54mm pin headers or sockets if you'd like to use this breakout with other connecting lead types or in a different context altogether.
It's far from fancy, but a handy addition to your bench nonetheless.
